Pipes

• ​High-Quality


• Durable


• Long Life


• Food Grade


• Good sealing


• Good wear resistance


80Ton Flour MIll Technical flow sheet

Parameter introduction of 82t per day wheat milling machine

• Model: Model HDF-82T wheat Milling Machine

• Capacity: Processing 82ton raw wheat in 24 hours

• Main machines and processing technology: High-Speed Vibrating Sieve, Destoner, Wheat Scourer, Pneumatic roller mill,Plansifter,Packing machine.

• Material: The pipes in milling section are stainless steel, and the magnetic separator is stainless steel .

• Workshop Size: 42M*10M*12M(L*W*H)

• Products and extraction rate (%): 75-80%

• Power required (kW) :Around 317

• Packing section: Auto weighing& packaging machine

• Success project: Kenya,Ethiopia,Zambia etc.


What kind of wheat flour Hongdefa wheat mill machine can produce?

Hongdefa wheat milling machine can also produce different specialized flour （High gluten wheat flour, medium gluten wheat flour, and low gluten wheat flour，Whole wheat flour，different grade flour）  according to market demand. For example wheat flour for making bread,cake,pasta,macaroni etc.

PLC control

• ​One-touch Start.


• Computer system, Full automatic.


• Online Maintain.Cloud connection.


• Flow Chart show each machine condition.


• Electric:Schneider/Siemens


Auto packing Machine

• Weighing Range：1-5Kg,10-25Kg,25Kg-50Kg


• Speed:200-280Bags/H


• Precision：0.2%


• Power：3.15Kw


• Power Supply:Ac380V/50Hz


• Air Supply:P≥0.6Mpa, Q≤2 M3/H


• Dimensions：1120×1550×3000（Mm）


• P≥0.6Mpa，Q≥2M3/H


• Weight: 650Kg​​

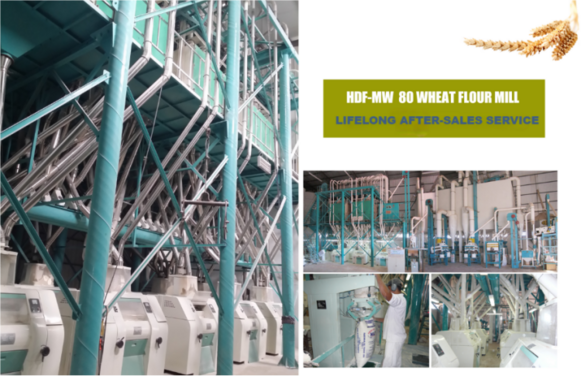

Fully automatic 82t/24h Automatic Flour Mill ​

Purifier on 80T flour mill ​

Application
The purifier is applied for purifying and grading of semolina and middling in semolina and flour mills.

​Function: Separate pure and relatively pure endosperm particles from the material ground by the milling machine

Good quality with stable function.

• ​​Input: Processing 82ton raw wheat in 24hrs.


• Structure: Vertical steel structure.


• Standard: European standard


• Installation&commissioning: Supply engineer guiding installation overseas.


• Teaching&training: supply


• Spare parts: Supply


Contact us now

Grace Wu

Tel/whatsapp +86 138 3110 7932

Contact us now for more details of Hongdefa Mill Complete Line with factory price.

Efficient and low resistance: The pulse dust collector adopts pulse jet cleaning technology, which overcomes the shortcomings and deficiencies of conventional filter cartridge dust collectors and mechanical rotary back blowing flat bag dust collectors.
Advanced structure.
Strong adaptability: Pulse dust collectors are suitable for various industrial production and processing processes, effectively removing dust and harmful gases from the air, protecting workers' health, and also helping to protect the normal operation and extend the service life of equipment.

Plansifter on 80t wheat mill

​

• ​Large screening area: effectively improves screening efficiency.


• Strong grading ability: The combination of multiple layers of screening grids enables precise grading of materials.


• Compact structure, sturdy and safe, smooth operation.


• Easy to operate.​

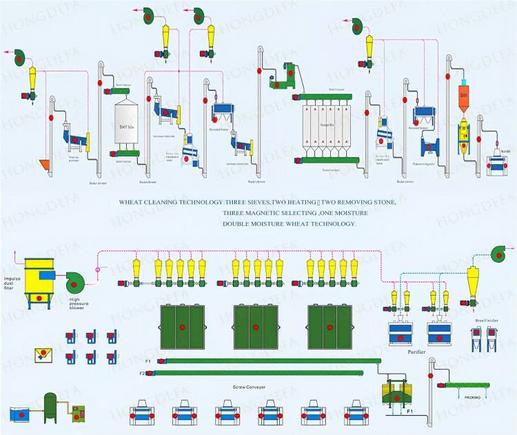

Technical flow chart

Hongdefa wheat mill machine technique flow is from cleaning to milling to sifting to packing.

1. The clean part:
Includes beating, screening, destoner, magnetic separator and dampening. Different capacity machine line has different number of beat, screen and stoner.
To ensure the flour Quality and the working life of the mill by removing the impurities of in the wheat before go to mill,
(1) Beat: Through the beat function of the wheat scourer or wheat brusher to remove dust sand small seed,bacterial count and insect seed.
(2) Screening: To remove large and small impurities in the wheat seed by make the wheat go through vibrating sieve and aspiration sieve.
(3) Destoner: Mainly remove stone in the wheat to protect them milled into the flour and also protect the roller on the milling process.
(4) Magnetic separator: Remove metal material in the wheat to keep the roller safe and also avoid flour exploration accident of spark caused by the impact of the metal impurities and the machine.
(5) Dampening: Dampening the wheat bran before mill to ensure the bran's integrity during the milling processing, avoid the bran going into the flour to keep flour quality.


2. The flour milling part:
Include different number of mill and sifter to mill the wheat and separate the flour and bran.
(1) Mill: Mill the wheat to break the integrity.
(2) Sifter: To separate the flour and bran​

3. Packing: packing finished flour into 1-5kg,10-25kg,25-50kg.

FAQ:

• Why choose Hongdefa?

• Because the quality of Hongdefa wheat flour milll machine is super good; we has more than 30 years of experience in wheat flour milll machine; we have branch offices in Zambia and Ethiopia; we also have a strong after-sales service team;


• How to choose the best supplier of Wheat flour mill machines?

•  Check the company's working life;


      Check the machine quality;

      Check after-sales service;

      See their running machines in your local.

• Does the wheat flour milling line can process maize and wheat at the same time?

• No, it is because the maize and wheat Physical Characteristics is different, like the shape, the hardness, all are different,  and the final product flour size is also different. The cleaner, the roller mill parameter, the plansifter sieve all are different. As professional manufacture for wheat flour mill machine, we suggest you do not process maize and wheat at the same time.


• Can your company accept the customized product?

•  Yes,OEM&ODM service is available. We can make the products according to your workshop size, special design, special color,special electricity request and special final products request.


• Where will I get flour mill spare parts in the future

•  We supply the spare parts with good price, the whole flour mill machine warranty time is 2years, with one year spare parts for free. Hongdefa have branch office in Zambia Ethiopia can supply the spare parts directly, or from China directly.  ​


​

Pneumatic roller mill machine

• ​​The partitioned paneling and swing-out feed module guarantee ideal access to the feeding and grinding rolls.This makes residue-free.


• Automatically adjust the feed material at the entrance door.


• Bearing SKF.


• Sensor Omron.


Good quality Pulse dust collector

Hongdefa engineer will make special design for different customers' requirement.

Welcome tel/whatsapp

+86 138 3110 7932 Grace Wu.

Tell me your idea,my professional teachnician will make the most suitable design for your flour mill factory.

Hongdefa factory introduction

Our company is a professional manufacture of maize milling machine and wheat flour milling machine,we provide high quality machine different capacity with different design according to client needs,with European technology,South Africa maize process,China wheat process,roll out unique and innovative wheat flour mill and maize mill plant.

• Over 42years experience factory.


• Branch office in Zambia Ethiopia. 8 local agent in Egypt Kenya Zimbabwe South Africa Senegal Nigeria Ghana DRC Congo.


• Supply after-sales service: installation, spare parts, technical guidance,teaching&training.


• Supply capacity: 10t/24h to 500t/24h(input).


• Sample mill machine installed in Hongdefa factory ,customer could check machine&flour quality by their own eyes.


• ​Powerful technical team & sales team for support.
