Plansifter on wheat mill​

​

• ​Large screening area: effectively improves screening efficiency.


• Strong grading ability: The combination of multiple layers of screening grids enables precise grading of materials.


• Compact structure, sturdy and safe, smooth operation.


• Easy to operate.​

Pulse dust collector

Pneumatic roller mill machine

• ​​The partitioned paneling and swing-out feed module guarantee ideal access to the feeding and grinding rolls.This makes residue-free.


• Automatically adjust the feed material at the entrance door.


• Bearing SKF.


• Sensor Omron.


Pipes

• ​High-Quality


• Durable


• Long Life


• Food Grade


• Good sealing


• Good wear resistance


Parameter introduction of 300t per day wheat milling machine

• Model: Model HDF-300T wheat Milling Machine

• Capacity: Processing 300ton raw wheat in 24 hours

• Main machines and processing technology: High-Speed Vibrating Sieve, Destoner, Wheat Scourer, Pneumatic roller mill,Plansifter,Packing machine.

• Material: The pipes in milling section are stainless steel, and the magnetic separator is stainless steel .

• Workshop Size: 52M*12M*32M(L*W*H)

• Products and extraction rate (%): 75-80%

• Power required (kW) :Around 876

• Packing section: Auto weighing& packaging machine

• Success project: Afghanistan,Malaysia etc.


• ​Input: processing 300ton raw wheat in 24hrs.


• Warehouse: 6floor building


• Installation&commissioning: Supply engineer guiding installation overseas.​

• Teaching&training: supply


• Standard: European standard


• Spare parts: Supply


Auto packing Machine

• Weighing Range：1-5Kg,10-25Kg,25Kg-50Kg


• Speed:200-280Bags/H


• Precision：0.2%


• Power：3.15Kw


• Power Supply:Ac380V/50Hz


• Air Supply:P≥0.6Mpa, Q≤2 M3/H


• Dimensions：1120×1550×3000（Mm）


• P≥0.6Mpa，Q≥2M3/H


• Weight: 650Kg​​

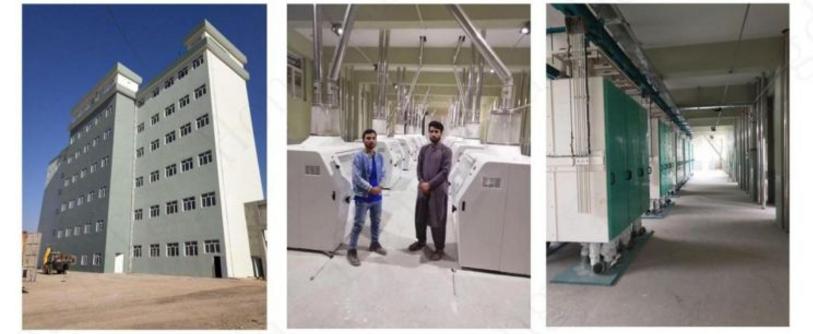

300t/24h Wheat flour mill machine in Afghanistan​

Technical flow chart

Hongdefa wheat mill machine technique flow is from cleaning to milling to sifting to packing.

1. The clean part:
Includes beating, screening, destoner, magnetic separator and dampening. Different capacity machine line has different number of beat, screen and stoner.
To ensure the flour Quality and the working life of the mill by removing the impurities of in the wheat before go to mill,
(1) Beat: Through the beat function of the wheat scourer or wheat brusher to remove dust sand small seed,bacterial count and insect seed.
(2) Screening: To remove large and small impurities in the wheat seed by make the wheat go through vibrating sieve and aspiration sieve.
(3) Destoner: Mainly remove stone in the wheat to protect them milled into the flour and also protect the roller on the milling process.
(4) Magnetic separator: Remove metal material in the wheat to keep the roller safe and also avoid flour exploration accident of spark caused by the impact of the metal impurities and the machine.
(5) Dampening: Dampening the wheat bran before mill to ensure the bran's integrity during the milling processing, avoid the bran going into the flour to keep flour quality.


2. The flour milling part:
Include different number of mill and sifter to mill the wheat and separate the flour and bran.
(1) Mill: Mill the wheat to break the integrity.
(2) Sifter: To separate the flour and bran​

3. Packing: packing finished flour into 1-5kg,10-25kg,25-50kg.

FAQ:

• Why choose Hongdefa?

• Because the quality of Hongdefa wheat flour milll machine is super good; we has more than 42 years of experience in wheat flour milll machine; we have branch offices in Zambia and Ethiopia; we also have a strong after-sales service team;


• How to choose the best supplier of Wheat flour mill machines?

•  Check the company's working life;


      Check the machine quality;

      Check after-sales service;

      See their running machines in your local.

• Does your company also supply silos, steel warehouse or animal food mill plants?

•  Yes, of course we provide them to support our customers in doing the whole factory for maximum profit.


• Are you a factory or a trading company?

•  We are a real manufacturer with a big factory of milling machines.Our factory is located in Zanhuang, Shijiazhuang, Hebei, China. We are very close to Beijing, You or your friends are most welcome to visit our factory face to face.


• Do you provide Chinese engineers for installation?

•    Yes of course we have more than 50 Chinese engineers in African countries for installation.
         We make it easier to arrange for them to install the flour mill machine for you.

Purifier on wheat milling ​

Application
It can get the pure endosperm by sifting which is depending on self-vibration and lower pressure blower’s wind power.

​Function: Separate pure and relatively pure endosperm particles from the material ground by the milling machine

Good quality with stable function.

Efficient and low resistance: The pulse dust collector adopts pulse jet cleaning technology, which overcomes the shortcomings and deficiencies of conventional filter cartridge dust collectors and mechanical rotary back blowing flat bag dust collectors.
Advanced structure.
Strong adaptability: Pulse dust collectors are suitable for various industrial production and processing processes, effectively removing dust and harmful gases from the air, protecting workers' health, and also helping to protect the normal operation and extend the service life of equipment.

What kind of wheat flour Hongdefa wheat mill machine can produce?

Hongdefa wheat milling machine can also produce different specialized flour （High gluten wheat flour, medium gluten wheat flour, and low gluten wheat flour，Whole wheat flour，different grade flour）  according to market demand. For example wheat flour for making bread , cake , pasta,macaroni etc.

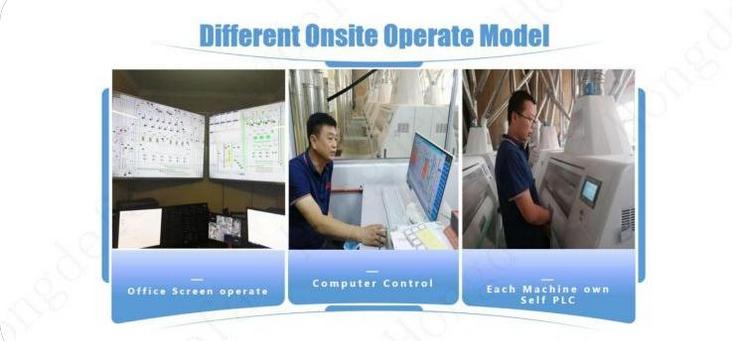

PLC control​ on Hongdefa Wheat MIll

Hongdefa factory introduction

Our company is a professional manufacture of maize milling machine and wheat flour milling machine,we provide high quality machine different capacity with different design according to client needs,with European technology,South Africa maize process,China wheat process,roll out unique and innovative wheat flour mill and maize mill plant.

• Over 42years experience factory.


• Branch office in Zambia Ethiopia. 8 local agent in Egypt Kenya Zimbabwe South Africa Senegal Nigeria Ghana DRC Congo.


• Supply after-sales service: installation, spare parts, technical guidance,teaching&training.


• Supply capacity: 10t/24h to 500t/24h(input).


• Sample mill machine installed in Hongdefa factory ,customer could check machine&flour quality by their own eyes.


• ​Powerful technical team & sales team for support.

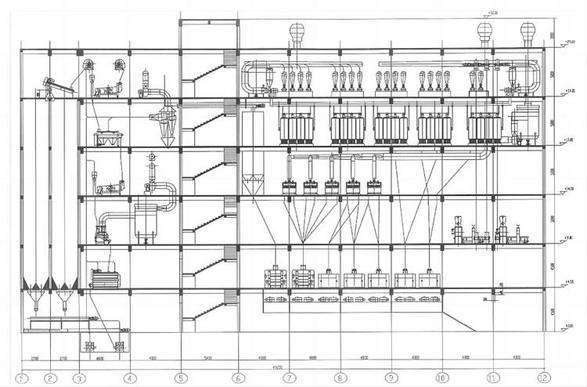

Technical flow sheet
