The technical designing of 500T wheat flour processing line


Hongdefa wheat mill machine technique flow is from cleaning to milling to sifting to packing.



Technical level

  1. Capacity: Processing wheat 500T /24H.

  2. The equipment can produce best flour, great flour, special flour and standard flour.

  3. The quality of flour could compare with European product.



Technical flow
Cleaning Technology: Cleaning system adopts  4 sieves, 2 beating,1 brush, 2 destone, 2 Damper moisture, 3 magnetic selecting.This producing line adopts second  moisture wheat technology. This increases the toughness of coat and assures the complete of bran.
Milling Technology:Milling system adopts 4B,7M, 2S,2T, middle and rear line beat bran, four purifying flour.The characteristics of the technology are purifiers with wheat duster, assured more good quality wheat flow into the central mill. Assured flour rate and quality.


Workshop and Wheat storage:
The workshop is 6 floors of ferroconcrete structure.

The total length of workshop is 54m,  12m width and 33m high. The total acreage is about 461.7 square meters. The raw  wheat tank is 10 thousands capacity silo. There are 8 moisture wheat tanks, a high level water tank on the top of workshop and a high level control water tank. These provide water for producing and fire protect


Plansifter



  • ​Large screening area: effectively improves screening efficiency.

  • Strong grading ability: The combination of multiple layers of screening grids enables precise grading of materials.

  • Compact structure, sturdy and safe, smooth operation.

  • Easy to operate.

500t/24h Wheat Milling Machine in Ethiopia

wheat milling pipes
hongdefa technician engineer

Parameter introduction of 500T per day wheat milling machine


  • Model: Model HDF-500T wheat Milling Machine
  • Capacity: Processing 500ton raw wheat in 24 hours
  • Main machines and processing technology: High-Speed Vibrating Sieve, Destoner, Wheat Scourer, Pneumatic roller mill,Plansifter,Packing machine.
  • Material: The pipes in milling section are stainless steel, and the magnetic separator is stainless steel .
  • Workshop Size: 54M*12M*32M(L*W*H)
  • Products and extraction rate (%): 75-80%
  • Power required (kW) :Around 1652
  • Packing section: Auto weighing& packaging machine
  • Success project: Ethiopia etc.


Pneumatic roller mill machine


  • ​​The partitioned paneling and swing-out feed module guarantee ideal access to the feeding and grinding rolls.This makes residue-free.

  • Automatically adjust the feed material at the entrance door.

  • Bearing SKF.

  • Sensor Omron.

Welcome Hongdefa factory

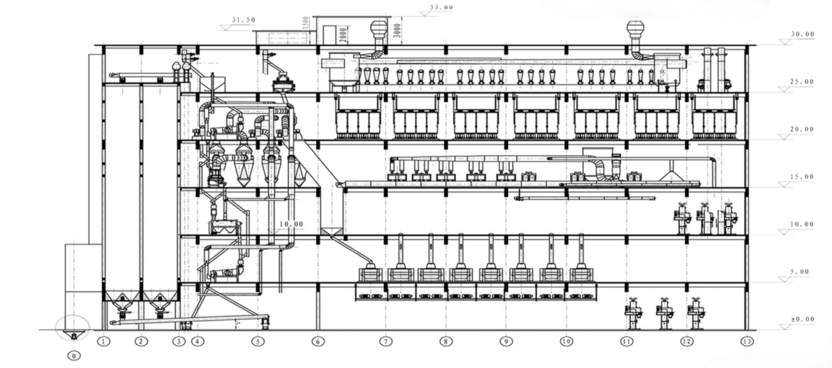

wheat milling plant 3D drawing

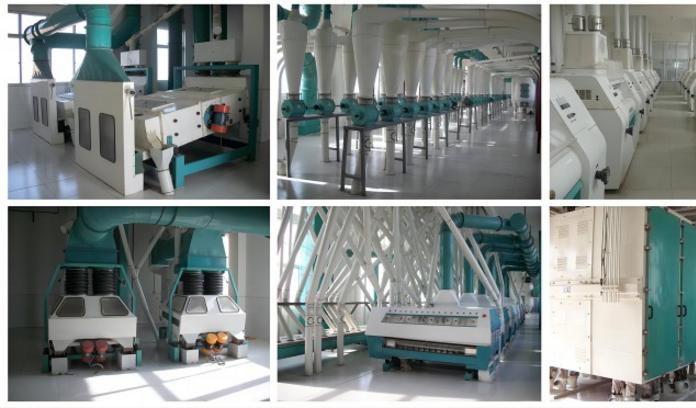

wheat milling plant plansifter

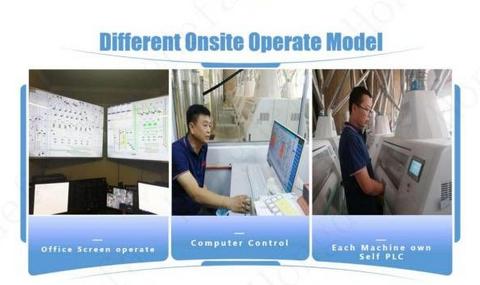

Flour mill PLC control
500t wheat milling plant processing flow chart

PLC control


  • ​One-touch Start.

  • Computer system, Full automatic.

  • Online Maintain.Cloud connection.

  • Flow Chart show each machine condition.

  • Electric:Schneider/Siemens

Contact us now


Grace Wu

Tel/whatsapp +86 138 3110 7932



Contact us now for more details of Hongdefa Mill Complete Line with factory price.


FAQ:

  • Why choose Hongdefa?

  • Because the quality of Hongdefa wheat flour milll machine is super good; we has more than 30 years of experience in wheat flour milll machine; we have branch offices in Zambia and Ethiopia; we also have a strong after-sales service team;


  • How to choose the best supplier of Wheat flour mill machines?

  •  Check the company's working life;

      Check the machine quality;

      Check after-sales service;

      See their running machines in your local.

  • Does your company also supply silos, steel warehouse or animal food mill plants?

  •  Yes, of course we provide them to support our customers in doing the whole factory for maximum profit.


  • Do you provide Chinese engineers for installation?

  •  Yes of course we have more than 50 Chinese engineers in African countries for installation.We make it easier to arrange for them to install the machine for you.


  • How does your factory do regarding quality control?
  • Quality is the life of the company. Our big boss is the engineer and he installed many milling lines by himself before. So the aim of our company is to produce high-quality products and win the market and customers with high quality.

    We have very strict management system for quality control from the very beginning to the end of the production. Each product must meet the company's quality standards before entering the next process, every product need fully assembled and carefully tested before it's packed for shipment.

Plant wheat milling auto packing

Auto packing Machine


  • Weighing Range:1-5Kg,10-25Kg,25Kg-50Kg

  • Speed:200-280Bags/H

  • Precision:0.2%

  • Power:3.15Kw

  • Power Supply:Ac380V/50Hz

  • Air Supply:P≥0.6Mpa, Q≤2 M3/H

  • Dimensions:1120×1550×3000(Mm)

  • P≥0.6Mpa,Q≥2M3/H

  • Weight: 650Kg​

wheat milling plant roller mill
wheat milling plant 500ton

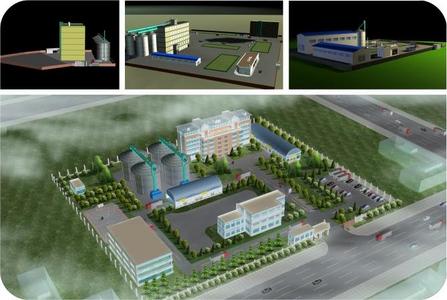

Factory design for 500T Wheat flour mill factory


Hongdefa will make a prefect design based on customer current land size.


We'll put the weighbridge, 6floor building warehouse, silo in a proper loaction.


Just send your land drawing to Grace

whatsapp +8613831107932.


She'll make drawing arrangement immediately.

different maize products produced by hongdefa machinery

Powerful teachnician team

What kind of wheat flour Hongdefa wheat mill machine can produce?


Hongdefa wheat milling machine can also produce different specialized flour (High gluten wheat flour, medium gluten wheat flour, and low gluten wheat flour,Whole wheat flour,different grade flour)  according to market demand. For example wheat flour for making bread , cake , pasta,macaroni etc.

Hongdefa factory introduction

Our company is a professional manufacture of maize milling machine and wheat flour milling machine,we provide high quality machine different capacity with different design according to client needs,with European technology,South Africa maize process,China wheat process,roll out unique and innovative wheat flour mill and maize mill plant.

  • Over 42years experience factory.

  • Branch office in Zambia Ethiopia. 8 local agent in Egypt Kenya Zimbabwe South Africa Senegal Nigeria Ghana DRC Congo.

  • Supply after-sales service: installation, spare parts, technical guidance,teaching&training.

  • Supply capacity: 10t/24h to 500t/24h(input).

  • Sample mill machine installed in Hongdefa factory ,customer could check machine&flour quality by their own eyes.

  • ​Powerful technical team & sales team for support.

Technical flow sheet

  • 4 design engineers with 30 years experience.

  • 6 design engineers with 10 years experience.

  • 6 design engineers with 3 years experience


You'll get a satisfied design with advance technology and higher extraction rate to ensure get maxium profit from market.
