Hongdefa factory introduction

Our company is a professional manufacture of maize milling machine and wheat flour milling machine,we provide high quality machine different capacity with different design according to client needs,with European technology,South Africa maize process,China wheat process,roll out unique and innovative wheat flour mill and maize mill plant.

• Over 42years experience factory.

• Branch office in Zambia Ethiopia. 8 local agent in Egypt Kenya Zimbabwe South Africa Senegal Nigeria Ghana DRC Congo.

• Supply after-sales service: installation, spare parts, technical guidance,teaching&training.


• Supply capacity: 10t/24h to 500t/24h(input).


• Sample mill machine installed in Hongdefa factory ,customer could check machine&flour quality by their own eyes.


• ​Powerful technical team & sales team for support.


Touch Screen Control

• Easy Operating-- Touch screen operating

• Big Screen Show the flow sheet


• Can customize different functions


If you are new in flour mill business. 42ton wheat mill machine would be very good choice.​

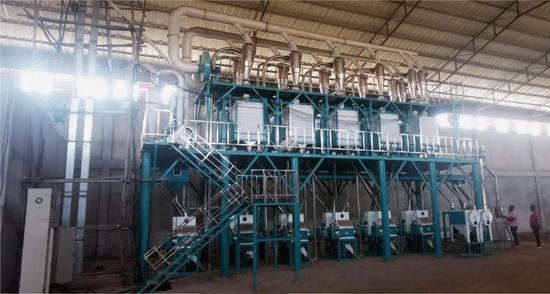

42t/24h Automatic Flour Mill in Angola​

• ​Input: Processing 42ton to 52ton raw wheat in 24hrs.


• Structure: Vertical steel structure.


• Complete line: Cleaning-milling-packing.


• Installation&commissioning: Supply engineer guiding installation overseas.


• Teaching&training: supply


Technical flow sheet

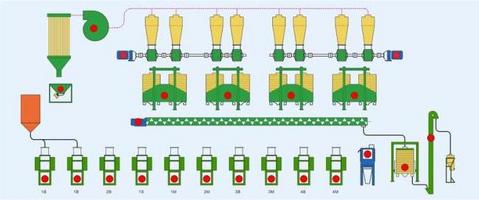

Flour section flow

of 42ton per day wheat milling machine

Parameter introduction of 42t to 52t per day wheat milling machine

• Model: Model HDF-42T/52T wheat Milling Machine

• Capacity: Processing 42ton to 52ton raw wheat in 24 hours

• Main machines and processing technology: High-Speed Vibrating Sieve, Destoner, Wheat Scourer, Roller mill,Double bin sifter,Packing machine.

• Material: The pipes in milling section are stainless steel, and the magnetic separator is stainless steel .

• Workshop Size: 36M*8M*7.5M(L*W*H)

• Products and extraction rate (%): 75-80%

• Power required (kW) :Around 160

• Packing section: Auto weighing& packaging machine

• Success project: Kenya,Ethiopia etc.

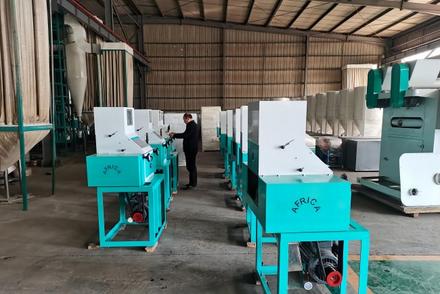

Roller mill machine

• ​​Type" 6F2235,6F2240,6F2250,6F2260.


• Power: 4.0-15KW


• Weight: 520-780kg


• Sensor for auto feeding.


Contact us now

Tel/whatsapp +86 138 3110 7932 Grace Wu

for more details of Hongdefa Mill Complete Line with factory price.

What kind of wheat flour Hongdefa wheat mill machine can produce?

Hongdefa wheat milling machine can also produce different specialized flour （High gluten wheat flour, medium gluten wheat flour, and low gluten wheat flour，Whole wheat flour，different grade flour）  according to market demand. For example wheat flour for making bread , cake , pasta,macaroni etc.

• Main Area No welding Quality sheet.

• Vibration smooth uniform feeding.


• Special Drawer design,easily to maintain.


• Galvanized Bolt Tight.



FAQ:

​

• How to choose the best supplier of Wheat flour mill machines?

•  Check the company's working life;


      Check the machine quality;

      Check after-sales service;

      See their running machines in your local.

• Does the wheat flour milling line can process maize and wheat at the same time?

• No, it is because the maize and wheat Physical Characteristics is different, like the shape, the hardness, all are different,  and the final product flour size is also different. The cleaner, the roller mill parameter, the plansifter sieve all are different. As professional manufacture for wheat flour mill machine, we suggest you do not process maize and wheat at the same time.


• ​Q: How long is your delivery time?


• A: Generally it is 2 months. We have some sets of flour mill machine in stock, need to see which capacity do you need.


​

• Does the wheat flour packing machine can pack different bags?

• Yes, the packing machine can pack 1kg-5kg; 5kg-20kg,12.5kg-25kg, 50kg

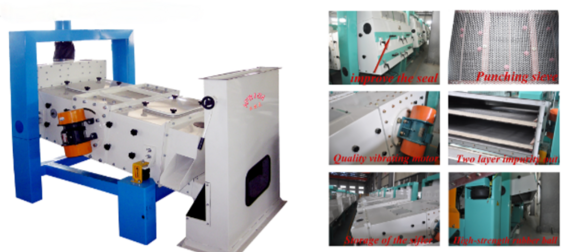

HIGH EFFICIENT SIFTER​

Technical flow chart

Hongdefa wheat mill machine technique flow is from cleaning to milling to sifting to packing.

1. The clean part:
Includes beating, screening, destoner, magnetic separator and dampening. Different capacity machine line has different number of beat, screen and stoner.
To ensure the flour Quality and the working life of the mill by removing the impurities of in the wheat before go to mill,
(1) Beat: Through the beat function of the wheat scourer or wheat brusher to remove dust sand small seed,bacterial count and insect seed.
(2) Screening: To remove large and small impurities in the wheat seed by make the wheat go through vibrating sieve and aspiration sieve.
(3) Destoner: Mainly remove stone in the wheat to protect them milled into the flour and also protect the roller on the milling process.
(4) Magnetic separator: Remove metal material in the wheat to keep the roller safe and also avoid flour exploration accident of spark caused by the impact of the metal impurities and the machine.
(5) Dampening: Dampening the wheat bran before mill to ensure the bran's integrity during the milling processing, avoid the bran going into the flour to keep flour quality.


2. The flour milling part:
Include different number of mill and sifter to mill the wheat and separate the flour and bran.
(1) Mill: Mill the wheat to break the integrity.
(2) Sifter: To separate the flour and bran​

3. Packing: packing finished flour into 1-5kg,10-25kg,25-50kg.

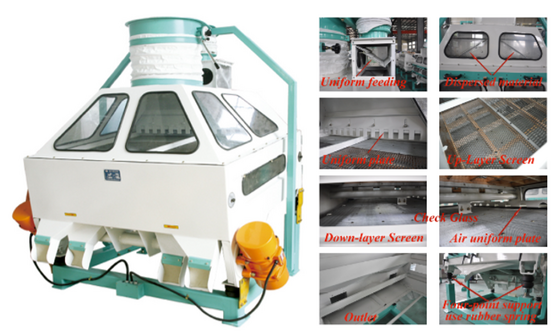

Higher efficiency destoner​

■ Easy operation, compact structure.
■ For different materials,destoner sieve can adjust between 10-14 degree
■ External fan, whole machine sealing , no dust outside, to achieve the desired environmental requirements. Reciprocating swing,splices using rubber bearings, vibration low, low noise.
■ Adopt self-aligning bearing with locking device, so that the mechanical character more stable

Pipes

• ​High-Quality


• Durable


• Long Life


• Food Grade


• Good sealing


• Good wear resistance

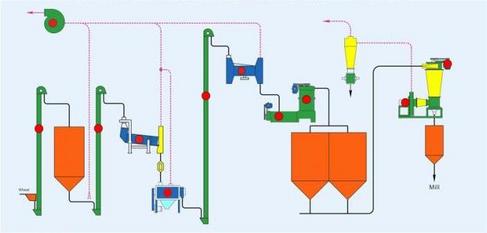

Cleaning section flow

of 42ton per day wheat milling machine
