This is a turn-key project include

  • Steel silo for storage raw maize.

  • 70ton maize milling plant.

  • 2 sets steel structure workshop: one for install maize milling plant, one for storage maize flour.


In May 2024,my sales&technical team come visited this factory for some after-sales service. Owner say: maize mill business is very good and better than before.

Technical flow chart

Hongdefa maize mill machine technique flow is from cleaning to degerminating to milling to sifting to packing.

What kind of maize products Hongdefa maize mill machine can produce?

The maize flour can be used for making food like Ugali, Fufu, Sadza,Nshima etc.
Maize grits are used for making snacks food,making beer.
Maize bran are used as animal feeds.

Parameter introduction of 70t/24h maize milling plant


  • Model: Model HDF-70T maize milling plant
  • Capacity: Processing 70 ton raw maize in 24 hours
  • Main machines and processing technology: High efficiency vibration sifter, Destoner, Damper, Japan technology degerminator, Roller mill,Double bin sifter,Packing machine.
  • Material: The pipes in milling section are stainless steel, and the moisture bin is stainless steel
  • Workshop Size: 36M*12M*8M(L*W*H)
  • Products and extraction rate (%): 75-85%
  • Power required (kW) :Around 220
  • Packing section: Auto weighing& packaging machine
  • Success project: Lundazi Zambia,Kerugoya Kenya,Lubumbashi Congo etc.


PLC control


  • ​One-touch Start.

  • Computer system, Full automatic.

  • Online Maintain.Cloud connection.

  • Flow Chart show each machine condition.

  • Electric:Schneider/Siemens

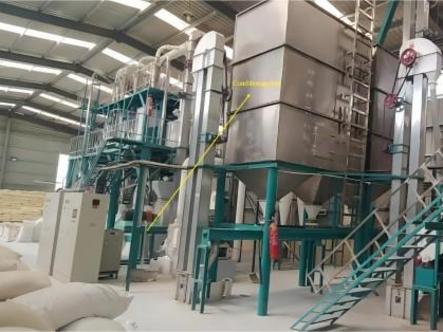

hongdefa maize milling plant
hongdefa maize milling plant
hongdefa factory
double bin sifter on mill miller

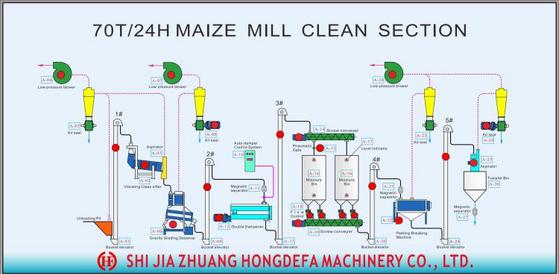

Cleaning section

Raw maize - Bucket elevator - maize cleaning machines - bucket elevator - stainless steel damper -computer control damper - bucket elevator - stainles steel conditioning bin - bucket elevator -degerminator - bucket elevator.

Degerminator


  • Japan technology

  • Dislodge the germ from its cavity,with the minimum reduction in size of the broken fragments.

  • Easy operate,high efrcient,Guarantee production yield/output&products high quality.

hongdefa mill pipes

Pneumatic roller mill machine


In milling section, Hongdefa use pneumatic roller mill machine which with more stable function.


  • ​​The partitioned paneling and swing-out feed module guarantee ideal access to the feeding and grinding rolls.This makes residue-free.

  • Automatically adjust the feed material at the entrance door.

  • Bearing SKF.

  • Sensor Omron.

Pipes


The pipes cyclones in milling section where contact with flour are stainless steel material.


  • ​High-Quality

  • Durable

  • Long Life

  • Food Grade

  • Good sealing

  • Good wear resistance

Contact us now


Tel/whatsapp +86 138 3110 7932 Grace Wu

for more details of Hongdefa Mill Complete Line with factory price.

hongdefa roller mill

Mainly maize products: maize grits for puffing.

Hongdefa engineer is the first time visit Thailand. The boss is very nice he take the engineers around and experience this beautiful tourist city in weekend.

On the opening day, local government officials attended the opening ceremony and give high praise to Hongdefa's maize milling plant.

Hongdefa factory introduction

Our company is a professional manufacture of maize milling machine and wheat flour milling machine,we provide high quality machine different capacity with different design according to client needs,with European technology,South Africa maize process,China wheat process,roll out unique and innovative wheat flour mill and maize mill plant.


  • Over 42years experience factory.

  • Branch office in Zambia Ethiopia. 8 local agent in Egypt Kenya Zimbabwe South Africa Senegal Nigeria Ghana DRC Congo.

  • Supply China export to South Africa the biggest maize mill machine with 1500t/24h.

  • Supply after-sales service: installation, spare parts, technical guidance,teaching&training.

  • Supply capacity: 10t/24h to 1500t/24h(input).

  • Sample maize mill machine installed in Hongdefa factory ,customer could check machine&flour quality by their own eyes.

maize degerminator on hongdefa mill

Stainless steel bin


  • What we supply is a complete line including conditioning bin.

  • Material: Stainless steel material ,3 times longer time use than iron/galvanized bin.

  • If you want to put some stainless steel bin for storage finished maize flour, hongdefa can supply and make a good design.

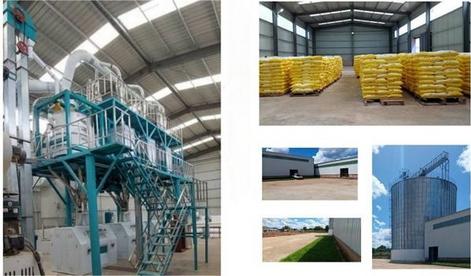

maize milling plant

Auto packing Machine


  • Weighing Range:1-5Kg,10-25Kg,25Kg-50Kg

  • Speed:200-280Bags/H

  • Precision:0.2%

  • Power:3.15Kw

  • Power Supply:Ac380V/50Hz

  • Air Supply:P≥0.6Mpa, Q≤2 M3/H

  • Dimensions:1120×1550×3000(Mm)

  • P≥0.6Mpa,Q≥2M3/H

  • Weight: 650Kg​

Double bin sifter


  • It is mainly used to grade and screen corn kernels according to different sizes and characteristics.

  • Dual compartment design

  • Easy to install

  • Good stability

FAQ:

  • Are you a trading company or real factory.

  • Hongdefa  is an integrated set of industry and trade company.


  • How many years has your factory been in operation?

  • Hongdefa factory have been in flour milling machine over 35years.But we have 10 engineers who have more than 35years experience in this business. China First Export flour mill machine to Africa is installed by our Engineer MR.Guo 40years ago.


  • Do you have any agents in Kenya?

  • No. The agent will produce extra costs that will be paid by the client finally.

We sell maize mill machines directly to customers no commission.

We can provide pre-sales consultant and after-sales service for Kenya customers from Zambia/Ethiopia office or China headquarters.

My company plan to set up a spare parts office in Nairobi.


  • I want to produce super white Ugali and fortified with vitamins and other minerals, your machine can do that?

  • Yes, We will supply a fortified doser to work with maize flour milling machinery. It can evenly add vitamin A and other trace elements into maize flour to help produce fortified maize flour.

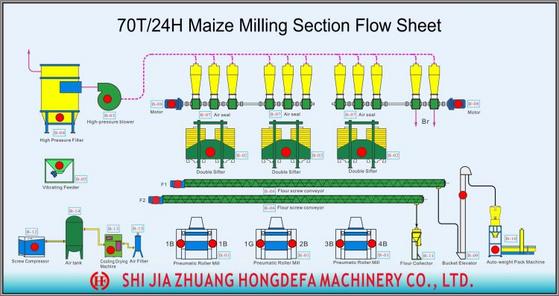

Milling section

Pneumatic roller mill machine - stainless steel pipes - double bin sifter - screw conveyor - bucket elevator - packing machine.

hongdefa maize milling plant
hongdefa mill can produce different size maize meal maize grits

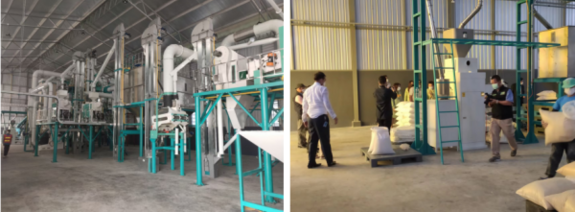

Fully automatic 70t/24h maize milling plant in Thailand

hdf auto packing
stainless steel conditioning bin
touch screen control panel

70t/24h maize milling plant in Congo
