Stainless steel bin
Stainless steel,good quality and long service life.
Contact with the cleaned materials,meet food grade requirements.
Effectively and conveniently check the flow of wet materials.
Efficient unloading.
Degerminator
Scrub”the maize skin from the maize kernel.
Dislodge the germ from its cavity,with the minimum reduction in size of the broken fragments.
Easy operate,high efrcient,Guarantee production yield/output&products high quality.
Hongdefa factory introduction
Our company is a professional manufacture of maize milling machine and wheat flour milling machine,we provide high quality machine different capacity with different design according to client needs,with European technology,South Africa maize process,China wheat process,roll out unique and innovative wheat flour mill and maize mill plant.
Over 42years experience factory.
Branch office in Zambia Ethiopia. 8 local agent in Egypt Kenya Zimbabwe South Africa Senegal Nigeria Ghana DRC Congo.
Supply China export to South Africa the biggest maize mill machine with 1500t/24h.
Supply after-sales service: installation, spare parts, technical guidance,teaching&training.
Supply capacity: 10t/24h to 1500t/24h(input).
Sample maize mill machine installed in Hongdefa factory ,customer could check machine&flour quality by their own eyes.
Pneumatic roller mill machine
The partitioned paneling and swing-out feed module guarantee ideal access to the feeding and grinding rolls.This makes residue-free.
Automatically adjust the feed material at the entrance door.
Bearing SKF.
Sensor Omron.
Details introduction
Contact us now
Tel/whatsapp +86 138 3110 7932 Grace Wu
for more details of Hongdefa Mill Complete Line with factory price.
PLC control
One-touch Start.
Computer system, Full automatic.
Online Maintain.Cloud connection.
Flow Chart show each machine condition.
Electric:Schneider/Siemens

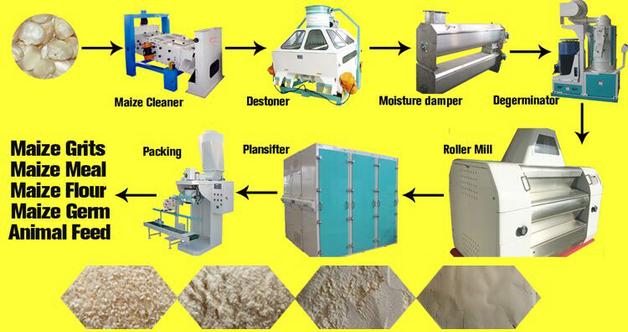

Technical flow chart
Hongdefa maize mill machine technique flow is from cleaning to degerminating to milling to sifting to packing.
First, the maize enters the cleaning section, have gravity classification stoner remove the stone.
Then through the moisture damper is important equipment to control the water content of the grain during in flour mills, stainless steel Bi-directional screw, prevent free water, an intensive intermixing.
Next use degerminator (Japan technology ) to remove the maize germ and bran, Then enter the milling section to mill maize and sifting the maize products, Then produce super white maize flour, the super fine maize meal, grits,bran, germ, etc.which according to client requirements and needs.
Finally, using the auto weighing &packing scale packing final maize products.
Plansifter
- Excellent filtering performance
- The effective height of the sieve box is large
- The structure is simple
- Wear resistant and corrosion-resistant
- Good sealing performance
- Easy to install
What kind of maize products Hongdefa maize mill machine can produce?
The maize flour can be used for making food like Ugali, Fufu, Sadza,Nshima etc.
Maize grits are used for making snacks food,making bear.
Maize bran are used as animal feeds.
Pipes
High-Quality
Durable
Long Life
Food Grade
Good sealing
Good wear resistance
Damper
Control water content of the material during material cleaning in milling plant.
Stainless steel with Double type.(Higher-Quality,More efficient).
Bi-directional screw,prevent free water,an intensive intermixing.

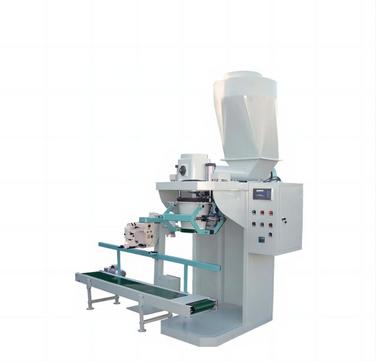

Auto packing Machine
Weighing Range：1-5Kg,10-25Kg,25Kg-50Kg
Speed:200-280Bags/H
Precision：0.2%
Power：3.15Kw
Power Supply:Ac380V/50Hz
Air Supply:P≥0.6Mpa, Q≤2 M3/H
Dimensions：1120×1550×3000（Mm）
P≥0.6Mpa，Q≥2M3/H
Weight: 650Kg
150t/24h corn milling machine in Kenya
Before Kenyan clients came to China, they clearly conducted comprehensive and detailed market research and contacted almost all relevant suppliers China. Among numerous options,he finally decide to choose Hongdefa as his maize milling supplier.
He said: He highly recognizes Hongdefa's professionalism on our processing design, maize mill machine quality, and after-sales service.
FAQ:
Q:Can your company accept the customized product?
A:Yes,OEM&ODM service is available. We can make the products according to your workshop size, special design, special color,special electricity request and special final products request.
Q:Does the maize mill machine can produce different kind of maize meal,maize flour in same time?
Yes,the maize flour milling machines can produce different sizes of maize meal or maize flour at same production line at same time.
Q: How about the after service of the maize mill machine?
We supply the spare parts with good price, the whole machine warranty time is 2years, with one year spare parts for free. Hongdefa have branch office in Lusaka can supply the spare parts directly, or from China directly. Hongdefa have engineer in Africa for maintain the machine.
I want to produce super white Ugali and fortified with vitamins and other minerals, your machine can do that?
Yes, We will supply a fortified doser to work with maize flour milling machinery. It can evenly add vitamin A and other trace elements into maize flour to help produce fortified maize flour.
Parameter introduction of 150t/24h corn milling machine
- Model: Model HDF-150T corn milling machine
- Capacity: Processing 150 ton raw maize in 24 hours
- Main machines and processing technology: High efficiency vibration sifter, Destoner, Damper, degerminator machine, Roller mill,Plansifter,Packing machine.
- Material: The pipes in milling section are stainless steel, and the moisture bin is stainless steel
- Workshop Size: 42M*12M*12M(L*W*H)
- Products and extraction rate (%): 75-85%
- Power required (kW) :Around 447
- Packing section: Auto weighing& packaging machine
- Success project: Lusaka Zambia ,Nairobi Kenya,Kwekwe Zimbabwe,Lilongwe Malawi etc.
